Products
Vulcan provides an eco-friendly water treatment system which protects your water pipes and equipment prevents limescale and rust. The method is based on the Vulcan-Impulse-Technology and treats your water without applying any chemicals or salt. Special electronic impulses change the crystallization process of the calcium in hard water, causing the particles to lose their ability to stick to surfaces.
Product sizes from ½″ up to 40″ pipe diameter
Vulcan is a customized solution for your individual needs. The various product lines of Vulcan solve problems in residential use, commercial applications and in industrial settings.
Vulcan Application Areas
Vulcan Anti-Scale System
- No salt or chemicals
- Magnetism-free
- For pipe diameters up to 40″
- Works on every pipe material
- International 25-year warranty
- Quality – Made in Germany
Vulcan Product Lines
RESIDENTIAL LINE½” until 2″ pipes |
COMMERCIAL LINE½” until 6″ pipes |
INDUSTRIAL LINE4½” until 40″ pipes |
|---|---|---|
| Vulcan 3000 | Vulcan S10 | Vulcan S150 |
| Vulcan 5000 | Vulcan S25 | Vulcan S250 |
| Vulcan S50 | Vulcan S350 | |
| Vulcan S100 | Vulcan S500 | |
| Vulcan X-Pro 1 | ||
| Vulcan x-Pro 2 |
RESIDENTIAL LINE | Vulcan 3000
| Pipe diameter: | max. 1½" (38 mm) |
| Max. capacity: | 3000 l/h (13 gpm) |
| Voltage: | 36 V |
| Wattage: | 2.0 Watt |
| Impulse bands: | 2 x 1 m (2 x 39") |
| Band width: | 10 mm (0.4") |
| Dimensions: | 125/80/30 mm (5.1/3.1/1.2") |
| Required space: | ~ 250 mm (~10") |
| Programs: | 1 |
RESIDENTIAL LINE | Vulcan 5000
| Pipe diameter: | max. 2” (50 mm) |
| Max. capacity: | 8000 l/h (35 gpm) |
| Voltage: | 36 V |
| Wattage: | 2.0 Watt |
| Impulse bands: | 2 x 2 m (2 x 79″) |
| Band width: | 10 mm (0.4") |
| Dimensions: | 150/90/30 mm (5.9/3.5/1.2″) |
| Required space: | ~ 350 mm (~14″) |
| Programs: | 1 |

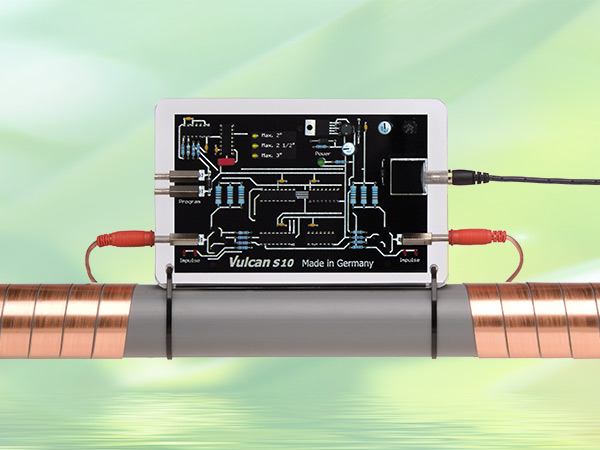

COMMERCIAL LINE | Vulcan S10
| Pipe diameter: | max. - 3” (76 mm) |
| Max. capacity: | 15 m³/h (65 gpm) |
| Voltage: | 36 V |
| Wattage: | 2.25 Watt |
| Impulse bands: | 2 x 3 m (2 x 118″) |
| Band width: | 20 mm (0.8") |
| Dimensions: | 190/120/40 mm (7.5/4.7/1.6″) |
| Required space: | ~ 500 mm (~20″) |
| Programs: | 3 |

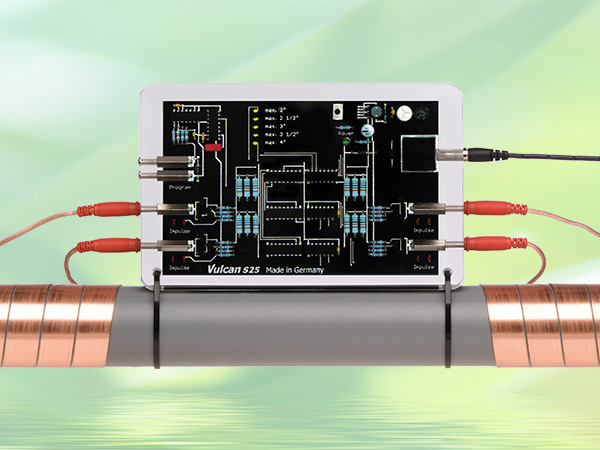

COMMERCIAL LINE | Vulcan S25
| Pipe diameter: | max. 4” (100 mm) |
| Max. capacity: | 30 m³/h (130 gpm) |
| Voltage: | 36 V |
| Wattage: | 2.25 Watt |
| Impulse bands: | 4 x 3 m (4 x 118″) |
| Band width: | 20 mm (0.8") |
| Dimensions: | 200/130/40 mm (7.9/5.1/1.6″) |
| Required space: | ~ 800 mm (~32″) |
| Programs: | 5 |

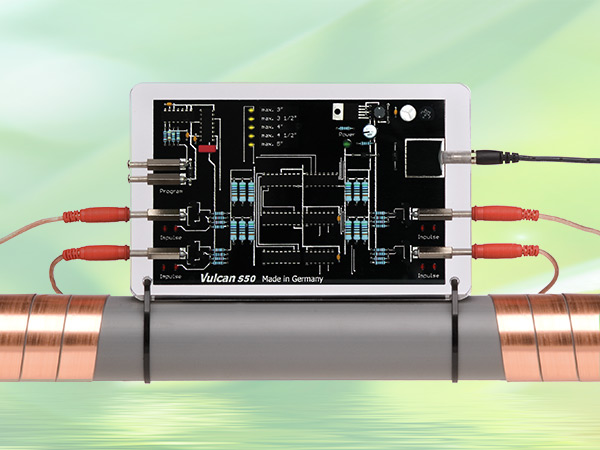

COMMERCIAL LINE | Vulcan S50
| Pipe diameter: | max. 5” (125 mm) |
| Max. capacity: | 70 m³/h (300 gpm) |
| Voltage: | 36 V |
| Wattage: | 2.25 Watt |
| Impulse bands: | 4 x 4 m (4 x 13' 2″) |
| Band width: | 20 mm (0.8") |
| Dimensions: | 200/130/40 mm (7.9/5.1/1.6″) |
| Required space: | ~ 900 mm (~35″) |
| Programs: | 5 |

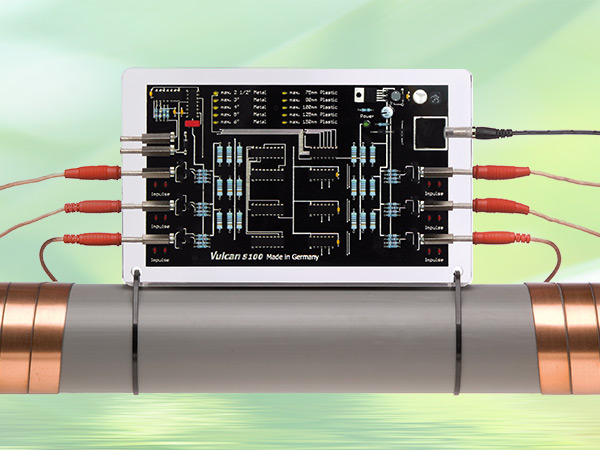

COMMERCIAL LINE | Vulcan S100
| Pipe diameter: | max. 6” (150 mm) |
| Max. capacity: | 120 m³/h (530 gpm) |
| Voltage: | 36 V |
| Wattage: | 2.5 Watt |
| Impulse bands: | 6 x 4 m (6 x 13' 2″) |
| Band width: | 20 mm (0.8") |
| Dimensions: | 230/150/40 mm (9.1/5.9/1.6") |
| Required space: | ~ 1200 mm (~47″) |
| Programs: | 10 |

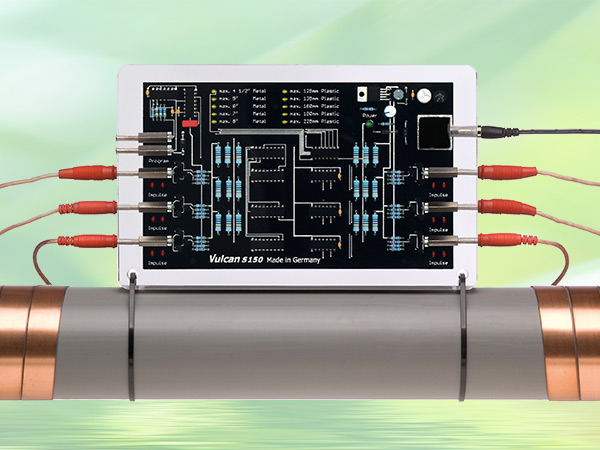

INDUSTRIAL LINE | Vulcan S150
| Pipe diameter: | max. 8” (200 mm) |
| Max. capacity: | 180 m³/h (790 gpm) |
| Voltage: | 36 V |
| Wattage: | 2.5 Watt |
| Impulse bands: | 6 x 8 m (6 x 26' 3″) |
| Band width: | 20 mm (0.8") |
| Dimensions: | 230/150/40 mm (9.1/5.9/1.6") |
| Required space: | ~ 1800 mm (~71″) |
| Programs: | 10 |
INDUSTRIAL LINE | Vulcan S250
| Pipe diameter: | max. 10” (250 mm) |
| Max. capacity: | 350 m³/h (1540 gpm) |
| Voltage: | 36 V |
| Wattage: | 2.75 Watt |
| Impulse bands: | 8 x 10 m (8 x 32' 9″) |
| Band width: | 20 mm (0.8") |
| Dimensions: | 280/200/50 mm (11.0/7.9/2.0") |
| Required space: | ~ 2500 mm (~99″) |
| Programs: | 10 |
INDUSTRIAL LINE | Vulcan S350
| Pipe diameter: | max. 14” (350 mm) |
| Max. capacity: | 500 m³/h (2200 gpm) |
| Voltage: | 36 V |
| Wattage: | 2.75 Watt |
| Impulse bands: | 8 x 20 m (8 x 65' 7″) |
| Band width: | 20 mm (0.8") |
| Dimensions: | 280/200/50 mm (11.0/7.9/2.0") |
| Required space: | ~ 3400 mm (~11' 2″) |
| Programs: | 10 |
INDUSTRIAL LINE | Vulcan S500
| Pipe diameter: | max. 20” (500 mm) |
| Max. capacity: | 800 m³/h (3520 gpm) |
| Voltage: | 36 V |
| Wattage: | 3.25 Watt |
| Impulse bands: | 10 x 30 m (10 x 98' 5″) |
| Band width: | 20 mm (0.8") |
| Dimensions: | 310/220/50 mm (12.2/8.7/2.0") |
| Required space: | ~ 4500 mm (~14′ 9″) |
| Programs: | 10 |
INDUSTRIAL LINE | Vulcan X-Pro 1
| Pipe diameter: | max. 30” (750 mm) |
| Voltage: | 36 V |
| Wattage: | 3.75 Watt |
| Impulse bands: | 12 x 25 m (12 x 82') |
| Band width: | 40 mm (1.6") |
| Dimensions: | 340/240/50 mm (13.4/9.4/2.0") |
| Required space: | ~ 5600 mm (~18′ 5″) |
| Programs: | 10 |
INDUSTRIAL LINE | Vulcan X-Pro 2
| Pipe diameter: | max. 40” (1000 mm) |
| Voltage: | 36 V |
| Wattage: | 3.75 Watt |
| Impulse bands: | 12 x 50 m (12 x 164') |
| Band width: | 40 mm (1.6") |
| Dimensions: | 340/240/50 mm (13.4/9.4/2.0") |
| Required space: | ~ 8200 mm (~26′ 11″) |
| Programs: | 10 |
